Arduino UNO Mini Limited Edition

Availability:

Available on backorder

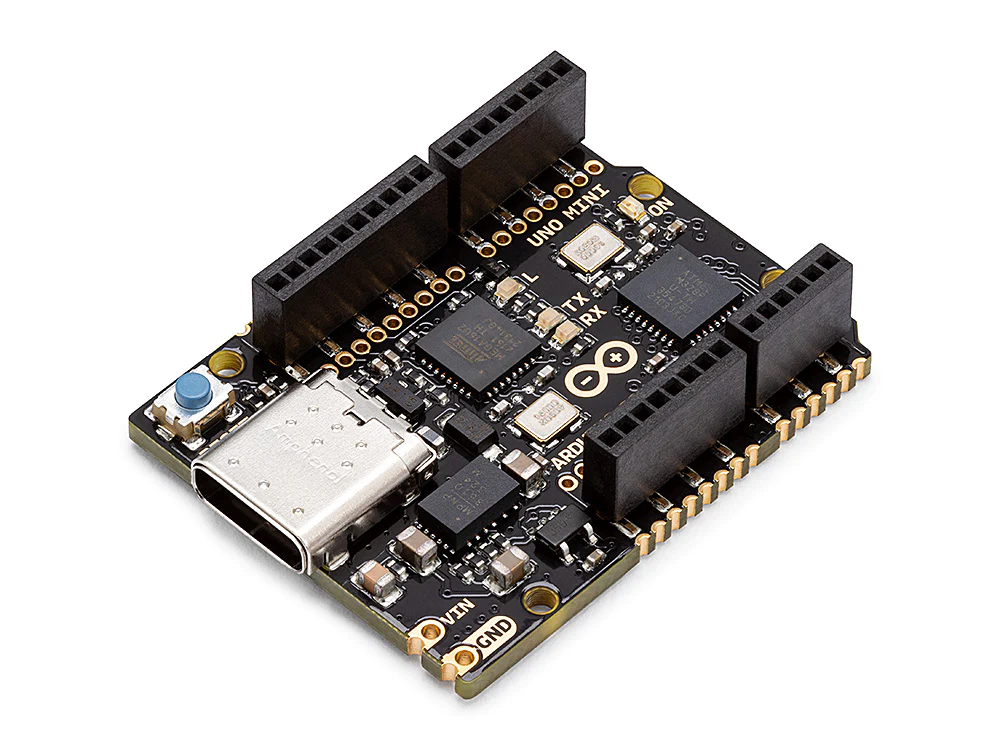

The Arduino UNO Mini Limited Edition is a collector’s item for serious Arduino lovers. It’s a miniaturized but fully functioning version of the well-known Arduino UNO, in a special livery and packaging.

$85.00

Available on backorder

Overview

Celebrating the Arduino UNO with a miniaturized limited edition

The world’s favorite development board has gone mini. Everything in this version of the Arduino UNO is unique. Black and gold, finishing, elegant design and packaging, all delivered to the highest standard. A little jewel to celebrate the Arduino community and what we’ve been doing together for all these years.

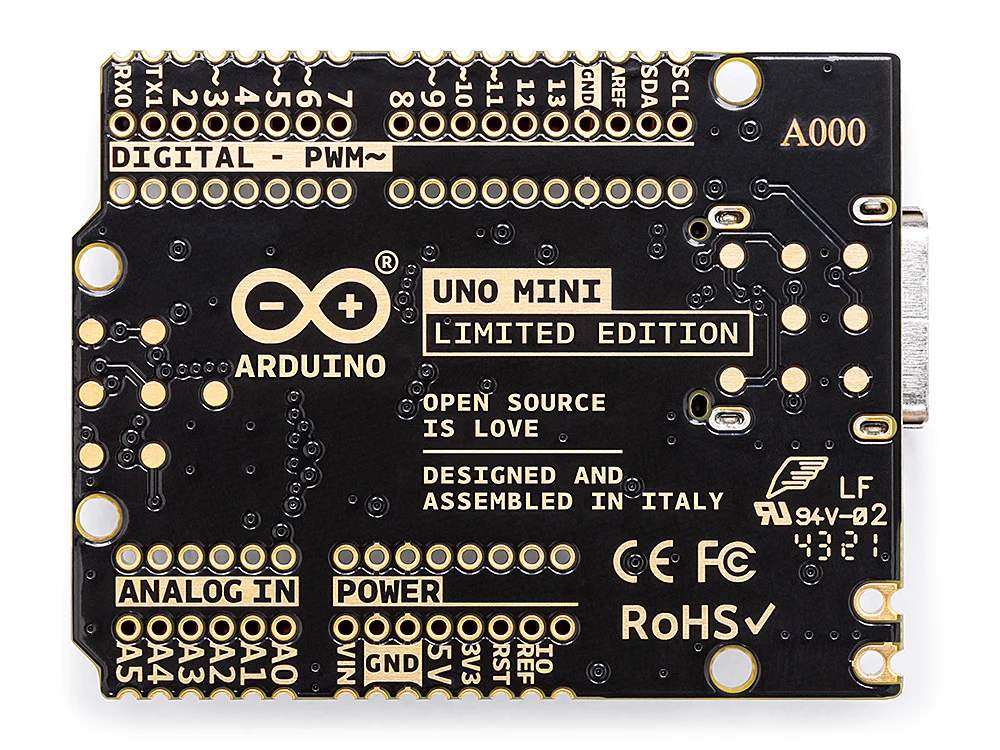

Each item is unique and numbered on the PCB, and includes a hand-signed letter from the founders. It’s a limited edition, so get while it’s in stock!

For serious Arduino UNO lovers

Arduino UNO Mini Limited Edition is a collector’s item for serious Arduino Lovers: hobbyists, students, makers, reimaginers, dreamers, hopers, fans, engineers, designers, questioners, cake-makers, problem-solvers, puzzlers, gamers, debaters, developers, entrepreneurs, architects, future-shapers, musicians, scientists… 10 million projects based on (official) Uno boards that have contributed to this incredible story.

Numero UNO in the Maker Space

“Uno” means one in Italian and was chosen in 2010 to mark the release of the Arduino IDE  1.0 software, five years after the Arduino project was born.
With over 10 million official UNO boards running amazing projects around the world, the Arduino UNO has been the number one choice for makers for over a decade.

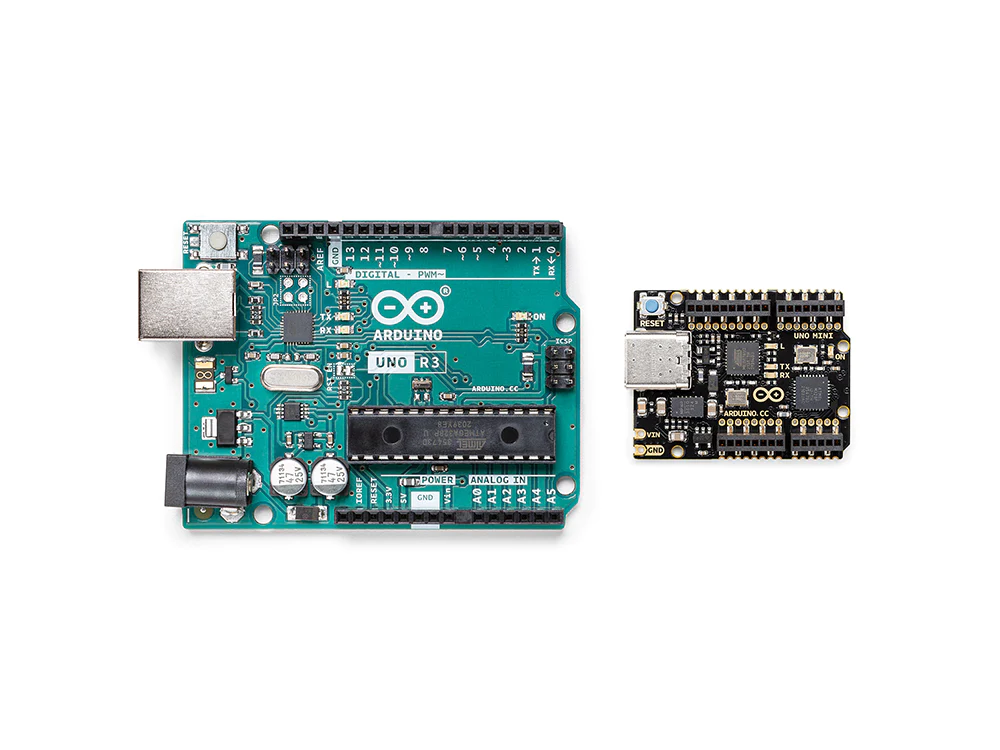

This limited edition celebrates our most iconic board, and all of the amazing projects that our community has created over the years. The UNO Mini LE functions exactly as the classic UNO, so it can very easily be used in any UNO projects.

Getting Started

The Getting Started section contains all the information you need to configure your board, use the Arduino Software (IDE), and start tinkering with coding and electronics.


Tech specs

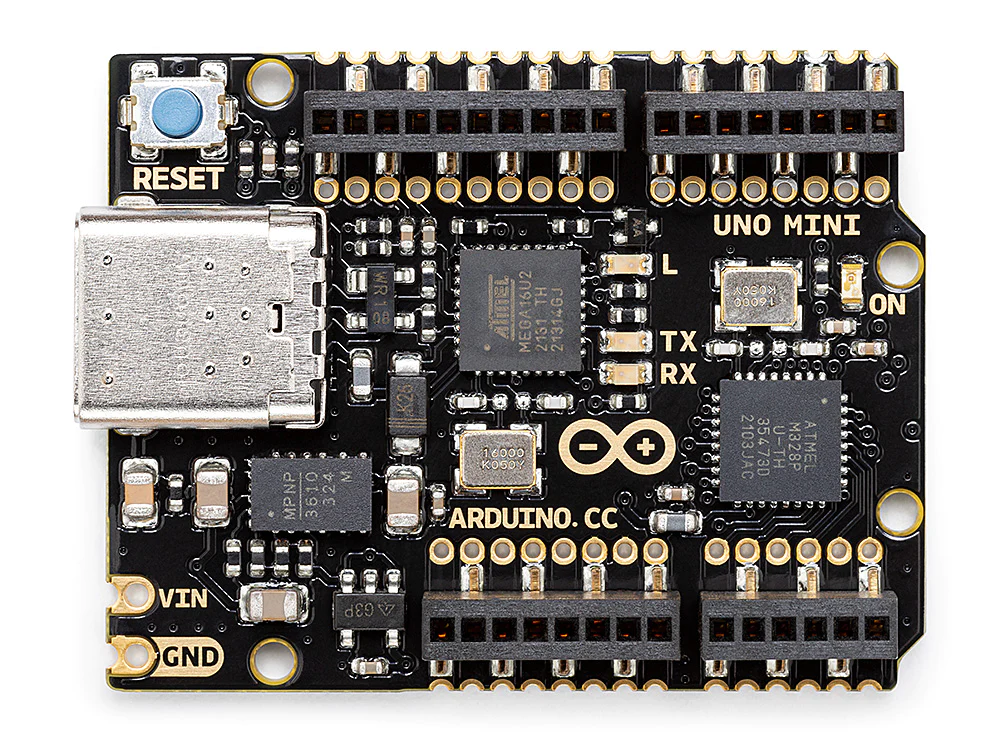

The Arduino UNO Mini LE is a microcontroller board based on the ATmega328P (datasheet). It has 14 digital inputs/outputs (six of which can be used as PWM outputs), six analog inputs, a 16MHz ceramic resonator, a USB-C connector, and a reset button. Contains everything needed to support the microcontroller. Simply connect it to a computer with a USB cable, use a power adapter, or connect a battery to get started.

MicrocontrollerATmega328P
USB connectorUSB-C
Built-in LED Pin13
Digital I/O Pins14
Analog input pins6
PWM pins6
UARTyes
I2Cyes
SPIyes
Circuit operating voltage5V
Input voltage (limit)6-12V
Battery connectorNone.
DC Current per I/O Pin20 mA
DC Current for 3.3V Pin50 mA
Main ProcessorATmega328P 16 MHz
USB-Serial ProcessorATmega16U2 16 MHz
Memory ATmega328P2KB SRAM, 32KB FLASH, 1KB EEPROM
Weight8.05 g
Width26.70 mm
Length34.20 mm



Conformities

The following Declarations of Conformities have ben granted for this board:
RCM
CE
FCC
UKCA
REACH
For any further information about our certifications please visit docs.arduino.cc/certifications

Documentation

This board is open-source hardware, get the sources here.

CAD FILES IN .ZIP

SCHEMATICS IN .PDF

DATASHEET IN .PDF

FRITZING IN .FZPZ
