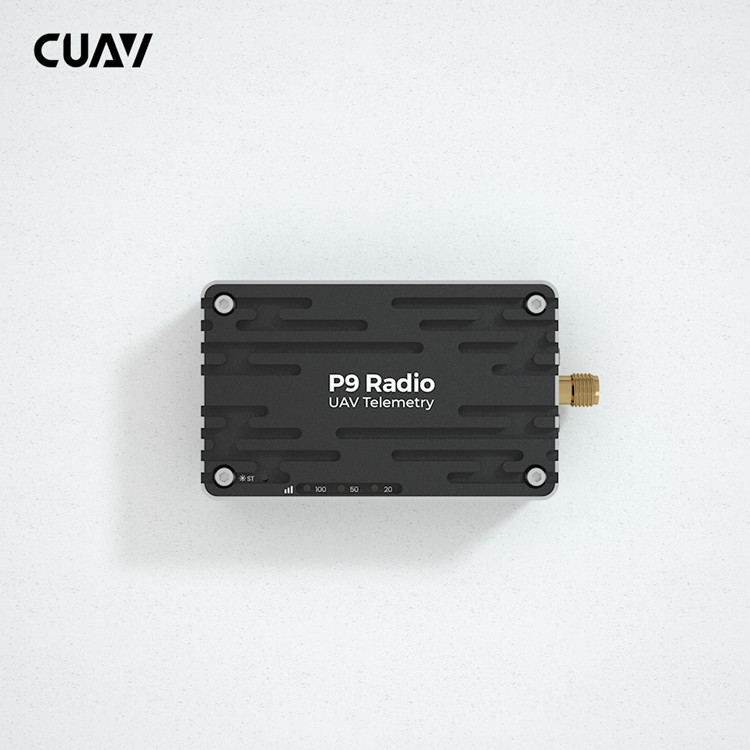

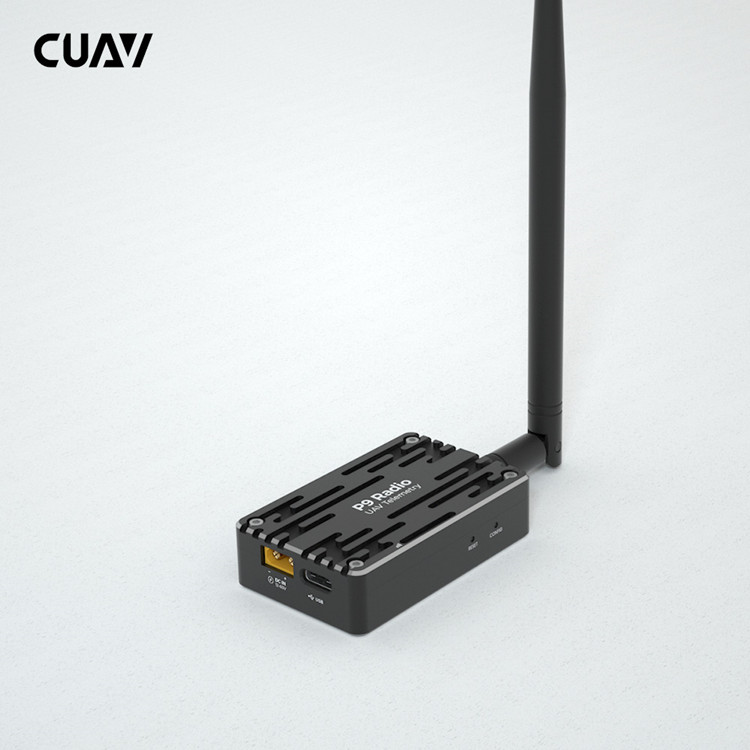

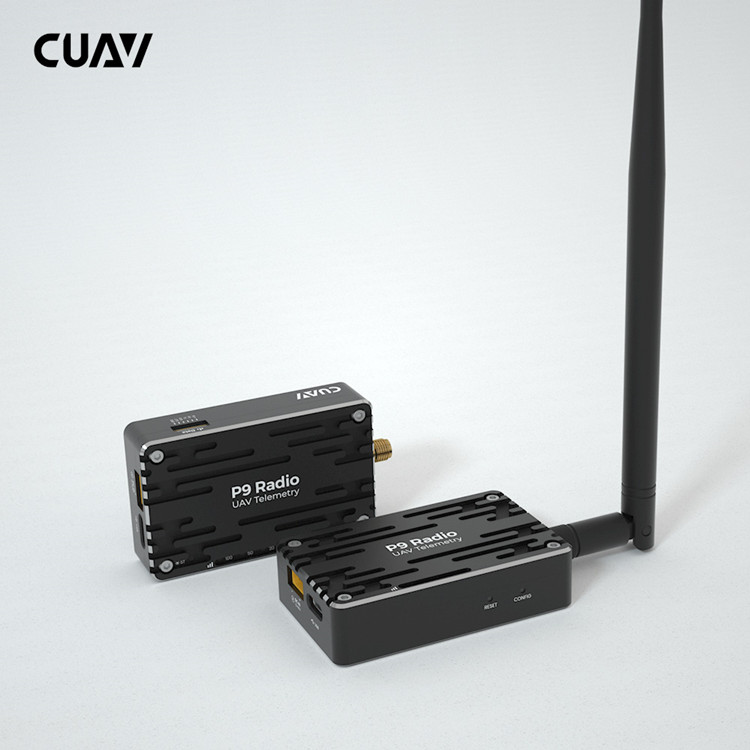

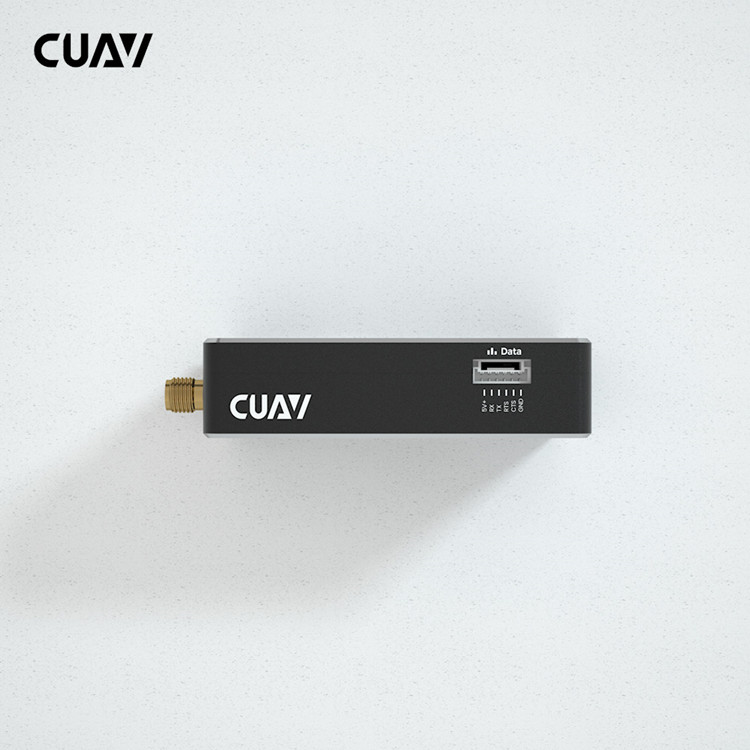

The CUAV P9 Radio Telemetry Module is a cutting-edge solution for UAV data link communication with 60km range of data transmission. Designed by CUAV, this module boasts high power, rapid frequency hopping, and exceptional reception sensitivity, making it a standout in UAV communication systems.
Key Features of the CUAV P9 Radio Telemetry Module:
Ultra-long range communication with a maximum distance of up to 60km.
Operates within the 902-928 MHz working frequency.
Supports both Pixhawk and Pixhack flight controls.
Employs high-speed frequency hopping technology for enhanced anti-interference.

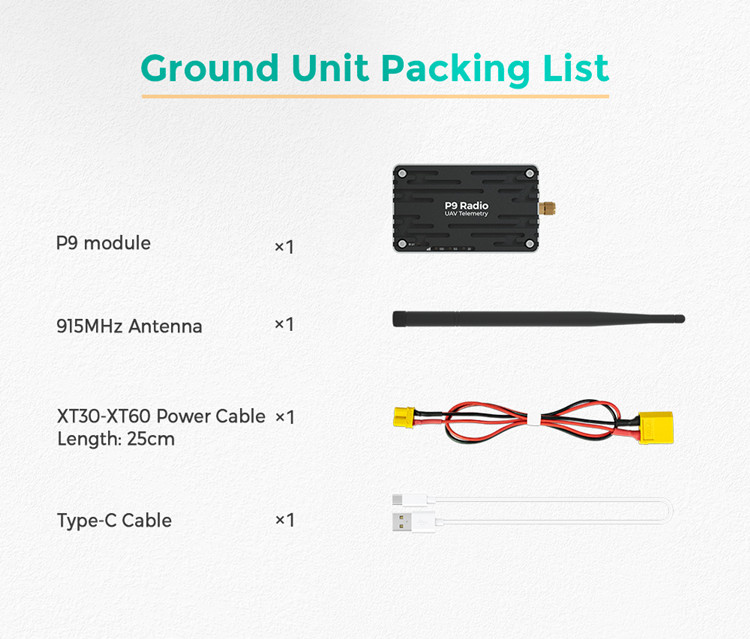

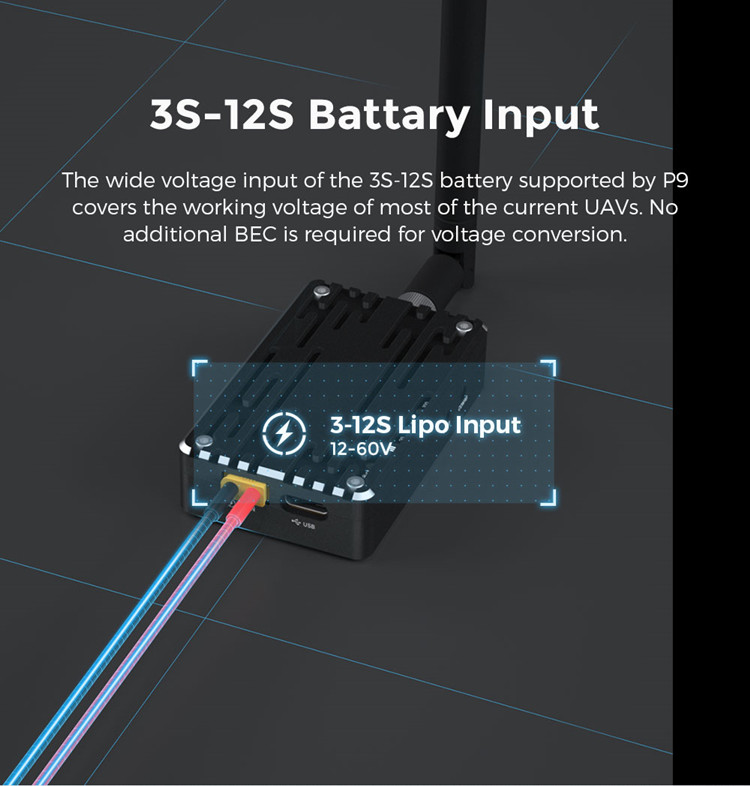

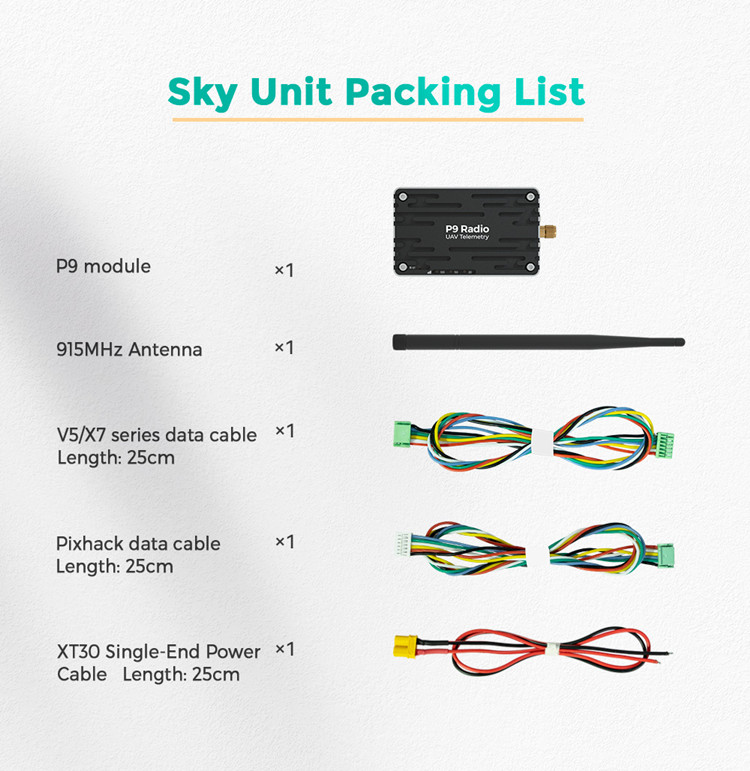

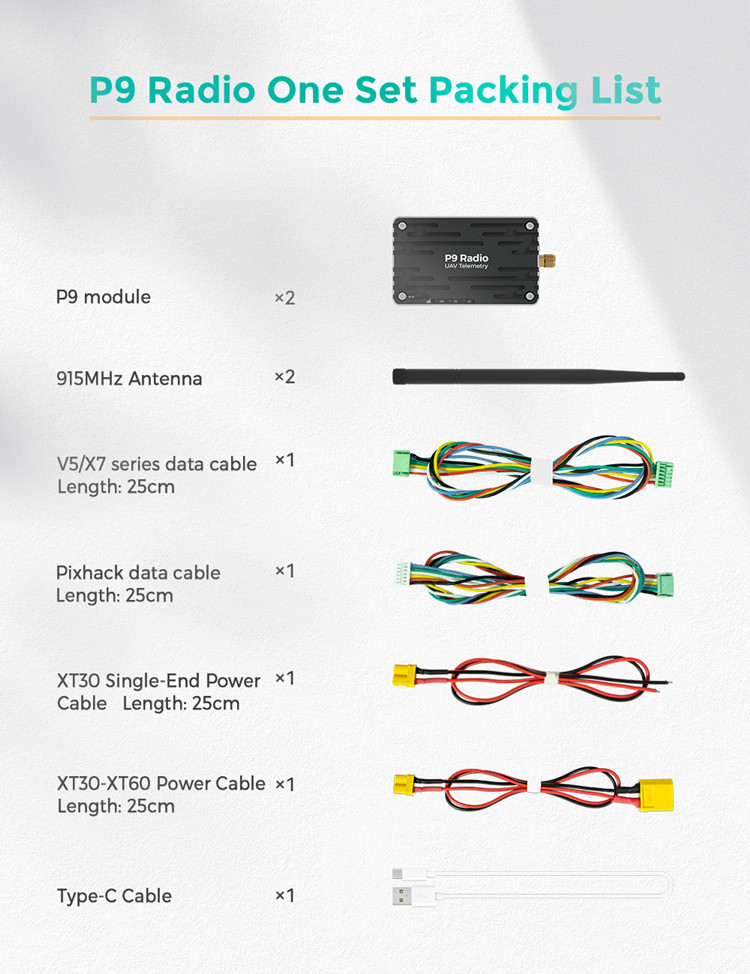

Comes with a 3-12S power supply module, 900MHZ antennas, micro USB cable, and data cables for PIXHACK and PIXHAWK.
XCTU Configuration Platform compatibility for easy setup and configuration.
The CUAV P9 is more than just a telemetry module; it’s a comprehensive solution for UAVs requiring reliable, long-distance communication. Whether you’re operating a drone for recreational, commercial, or research purposes, the CUAV P9 ensures that your UAV remains connected, even in challenging environments.
Description
The CUAV P9 Radio Telemetry Module is a cutting-edge solution for UAV data link communication with 60km range of data transmission. Designed by CUAV, this module boasts high power, rapid frequency hopping, and exceptional reception sensitivity, making it a standout in UAV communication systems.
Key Features of the CUAV P9 Radio Telemetry Module:
Ultra-long range communication with a maximum distance of up to 60km.
Operates within the 902-928 MHz working frequency.
Supports both Pixhawk and Pixhack flight controls.
Employs high-speed frequency hopping technology for enhanced anti-interference.
Comes with a 3-12S power supply module, 900MHZ antennas, micro USB cable, and data cables for PIXHACK and PIXHAWK.
XCTU Configuration Platform compatibility for easy setup and configuration.
The CUAV P9 is more than just a telemetry module; it’s a comprehensive solution for UAVs requiring reliable, long-distance communication. Whether you’re operating a drone for recreational, commercial, or research purposes, the CUAV P9 ensures that your UAV remains connected, even in challenging environments.
Technical Specifications
Working frequency
902-928 MHz
Transmission technology
Frequency Hopping
Transfer Protocol
Transparent transmission
Forwarding error detection
Hamming /BCH/Golay/Reed-Solomon
Error detecting
Error Detection 32 bits of CRC, ARQ
Encrypt
Optional (see –AES option)
Range
Up to 60km (depending on the antenna and use environment)
Sensitivity
-110 dBm @ 115.2 kbps, better than -108 dBm @ 172.8 kbps, better than -107 dBm @ 230.4 kbps
Output power
100mW – 1W (20-30dBm) （Default：1W)
Serial interface
3.3V CMOS TTL
Antenna gain
5 dbi
Baud rate
Up to 230.4kbps, 57600 default
Link Rate
115 – 276 kbps
Operating Modes
Auto Routing, Store and Forward,Self Healing, Packet Routing Modes
