Summary
The GEPRC ELRS Nano 915M PA500 receiver is an advanced reception system based on the ExpressLRS open-source project. ExpressLRS offers long-range operation, low latency, high refresh rates, and affordability.
The ELRS Nano 915M PA500 receiver features a TCXO (temperature-compensated crystal oscillator) to prevent frequency shifts caused by temperature changes. It adopts an integrated high-power PA chip, boasting a telemetry power of up to 500mW. It features a built-in WIFI antenna, facilitating firmware upgrades effortlessly via WIFI, and offers convenient installation with its sh1.0 connector.
Feature
- Compact size of 13x23x5.5mm
- Weighing only 1.9g
- WIFI firmware upgrade
- ELRS open-source project, long-range remote control
- Maximum refresh rate of 200Hz
- Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures, ensuring control stability during long operations
- Features a built-in high-power PA chip, providing a maximum Telemetry power of 500mW
- Equipped with an sh1.0 connector for easy installation

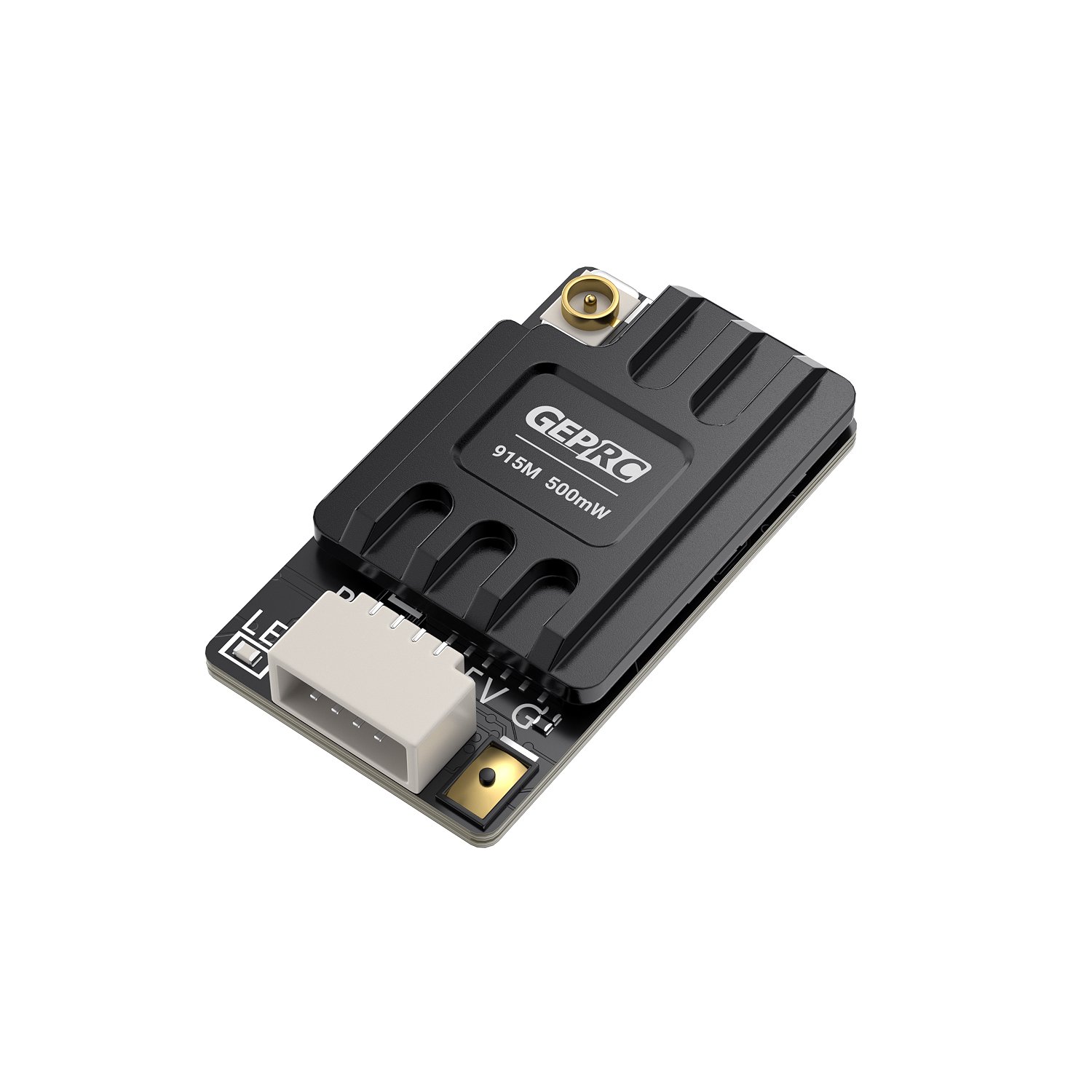

- Adopts an aluminum alloy CNC shell to optimize heat dissipation
Specifications
- Model: GEPRC ELRS Nano 915M PA500 receiver
- Dimension: 13x23x5.5mm
- Weight: 1.9g (RX only)
- Chips: ESP8285, SX1276
- Crystal Oscillator: TCXO
- Frequency Band: 915MHz FCC /868MHz EU
- Refresh Rate: 25Hz-200Hz
- Operating Voltage: 5V
- Antenna Connector: ipex1
- Telemetry Power: 500mW
- Firmware: GEPRC Nano 915M PA500 RX
Includes
1 x ELRS Nano 915M PA500 receiver

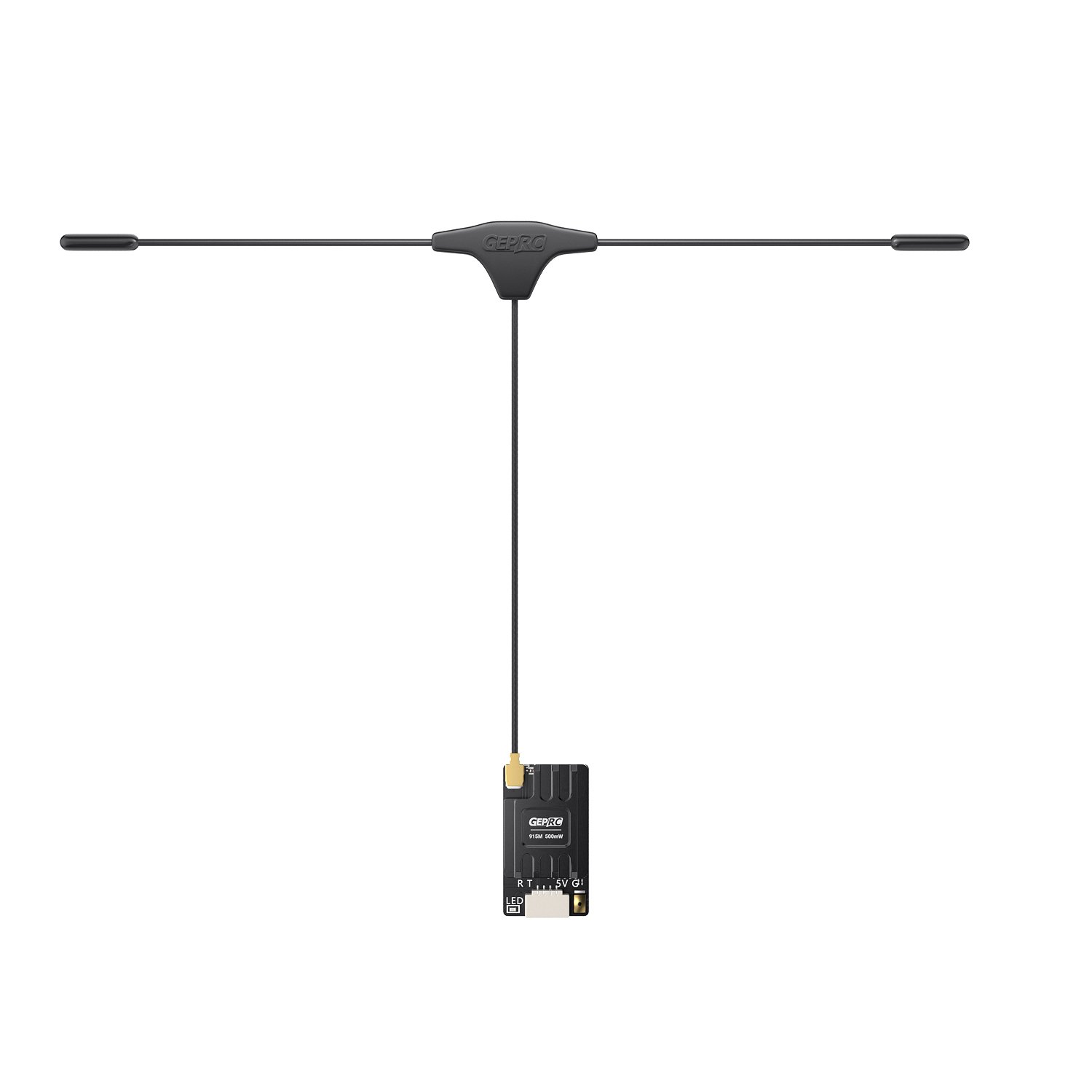

1 x Antenna
1 x Heat shrink tube
1 x 4pin silicone cable
1 x User manual
