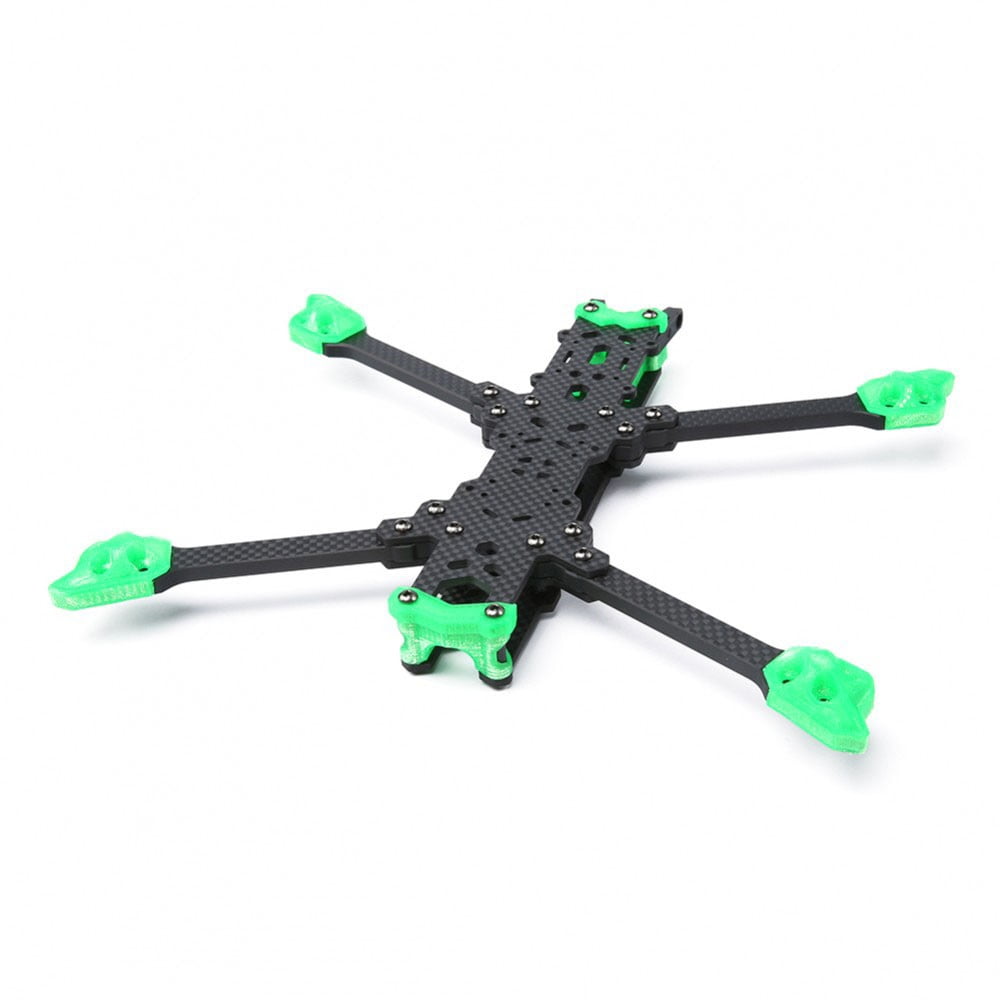

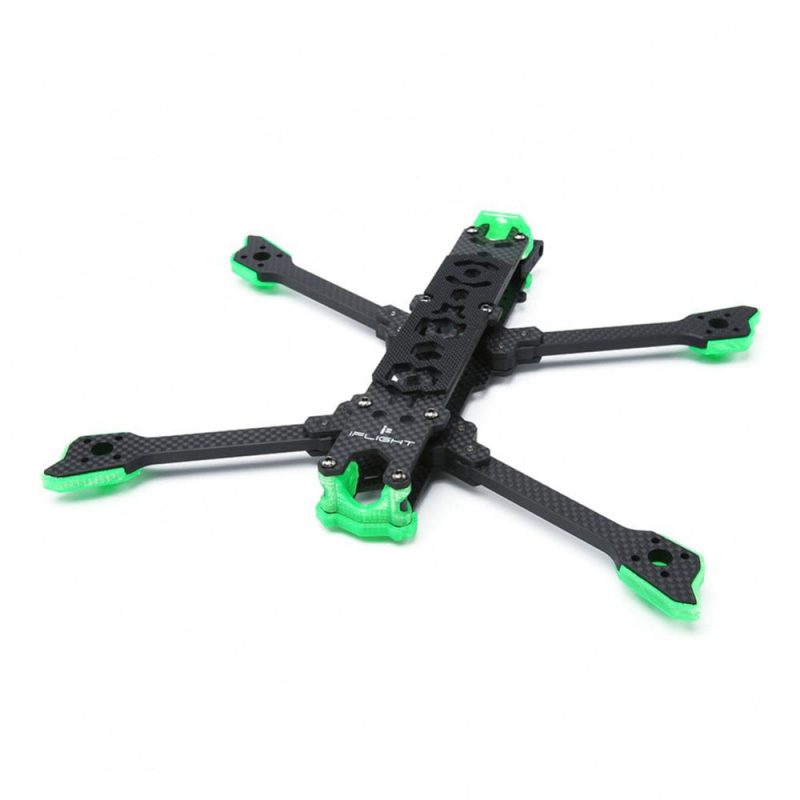

iFlight Titan LH5 5″ Freestyle Frame Kit

The TITAN LH5 5″ Freestyle Frame Kit was designed for freestyle flying. This frame is a “slammed,” to provide many pilots with a low CG, making it easy to wire electronics. This frame is suited for 5″ propellers and you can mount 20x20mm and 30.5×30.5mm stacks in the front and a VTX in the rear!

Features

• Popular H style configuration, prop in View

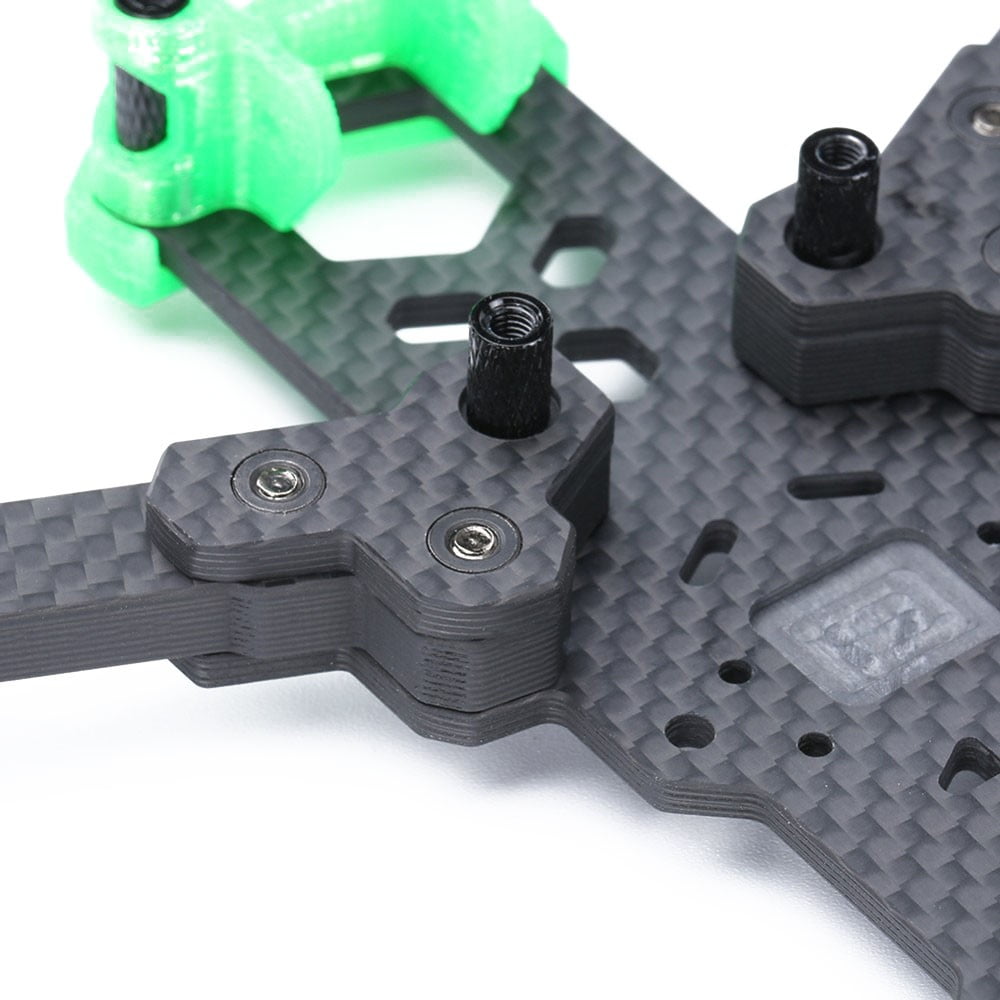

• Easy-Swap arms
• Fits both 30.5x and 20x stacks
• Full 3K Carbon Fiber airframe with chamfered arm
• 249mm wheelbase, weight: 145.9g with TPU parts

Specifications

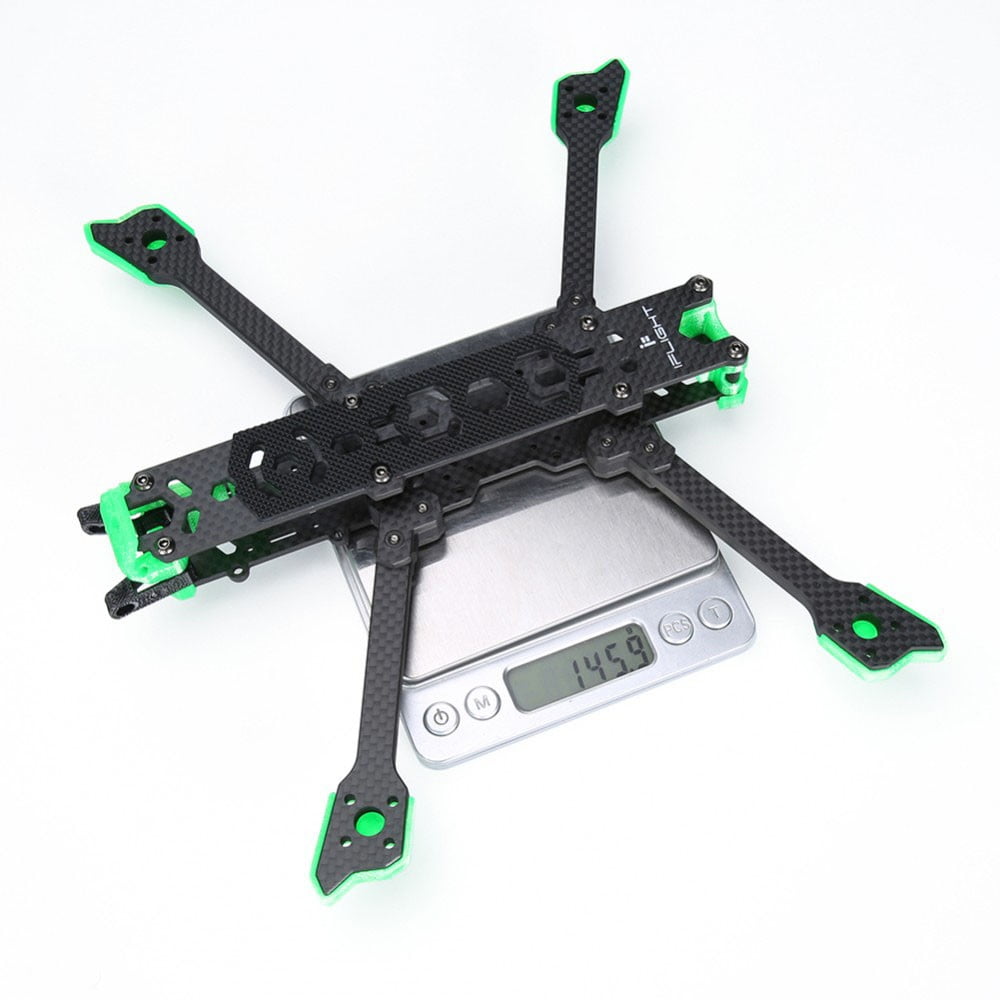

• Weight: 145.9 (with TPU parts, and battery anti-slip pads)
• Wheelbase: 249mm
• Main body dimension: 201*147mm

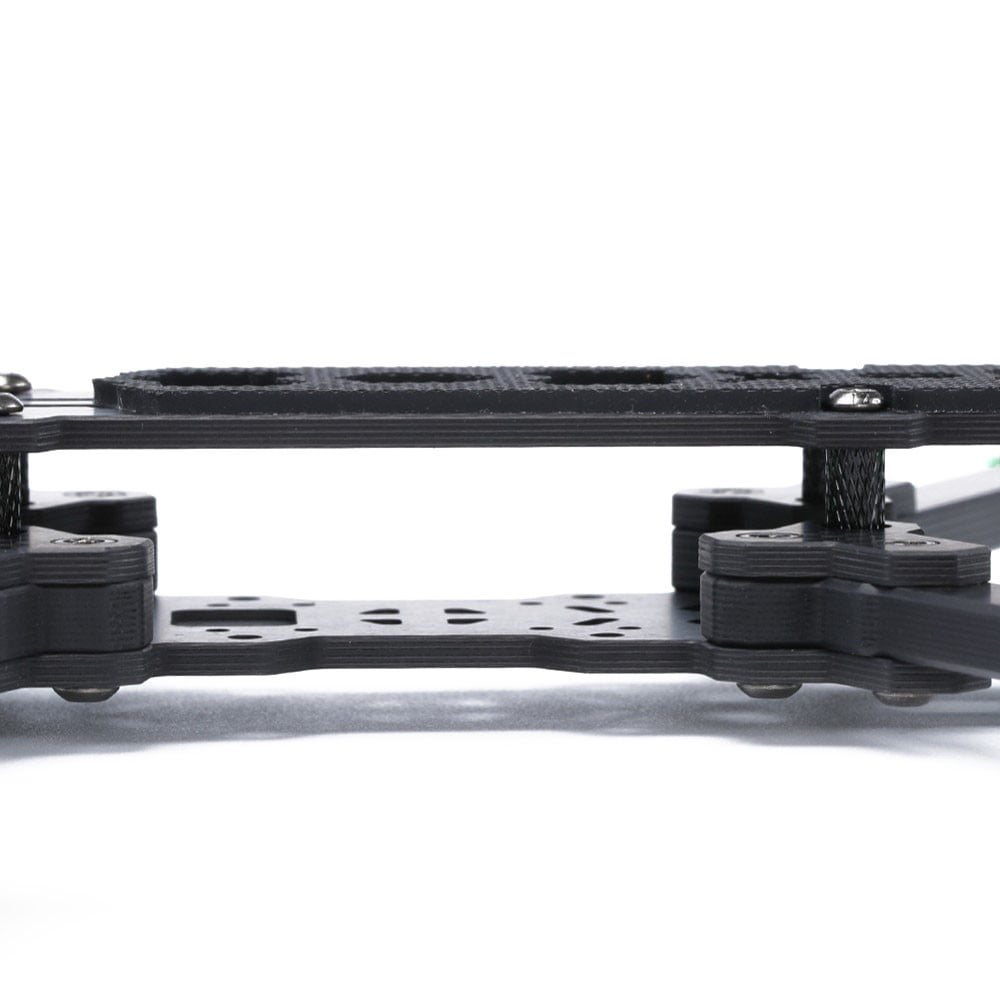

• Bottom to top distance: 16mm
• Arm thickness: 6mm
• Bottom plate thickness: 3mm
• Top plate thickness: 3mm
• Upper plate thickness: 3mm
• Mounting Holes: 30.5*30.5mm
• Support camera size: 14*14mm

Recommended Motors (Not Included)

• 22xx, 23xx

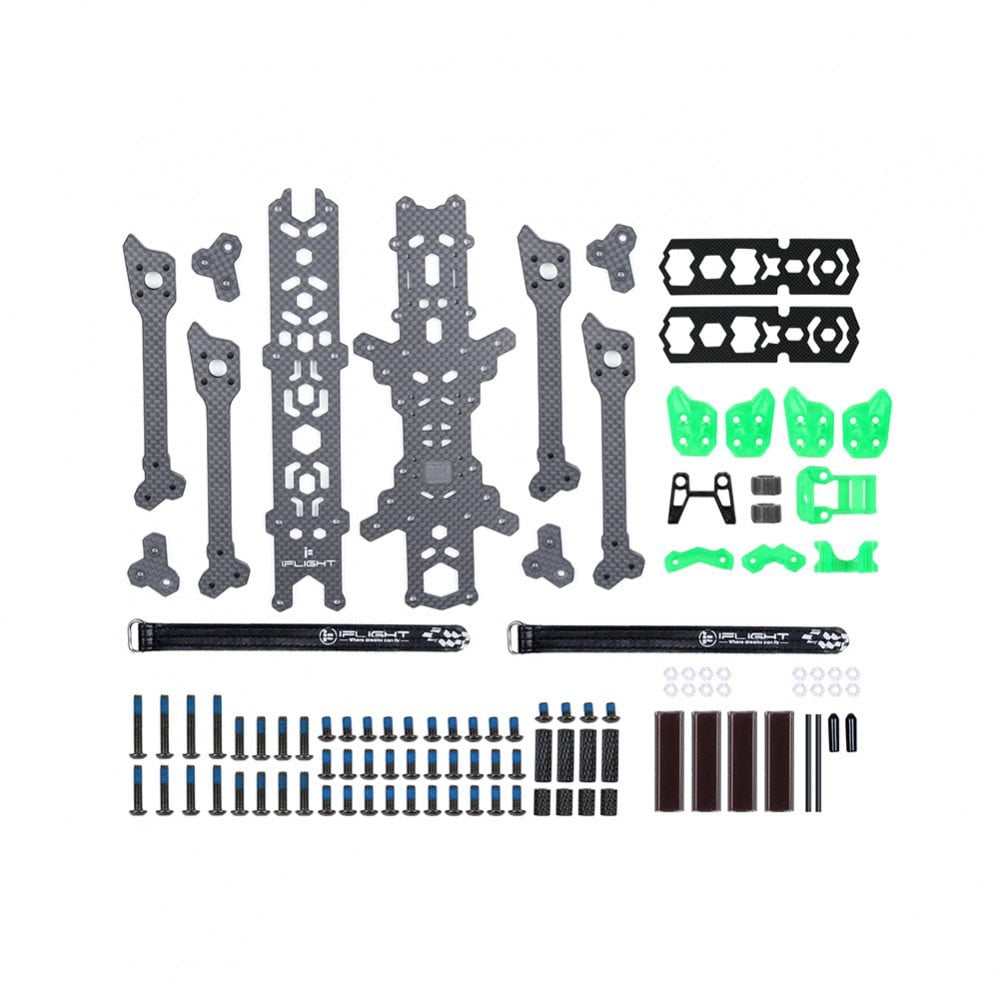

Includes

• 1 x TITAN LH5 Freestyle Frame
• 1 x Screw Bag

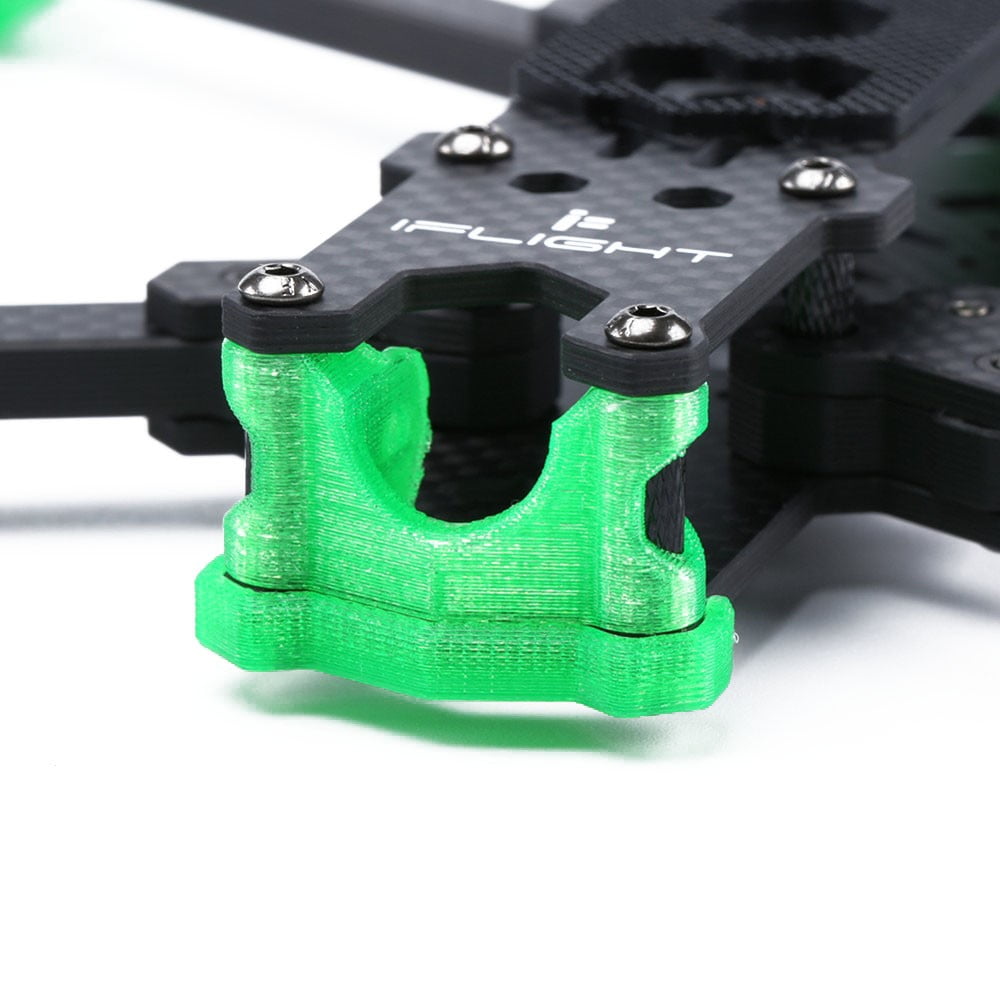

• 1 x TPU Camera mount adapters
• 4 x Arm guard/Motor mount
• 1 x TPU bottom plate front protective mount
• 1 x TPU bottom plate rear protective mount
• 1 x Battery Anti-slip Mat
• 2 x Battery Straps
