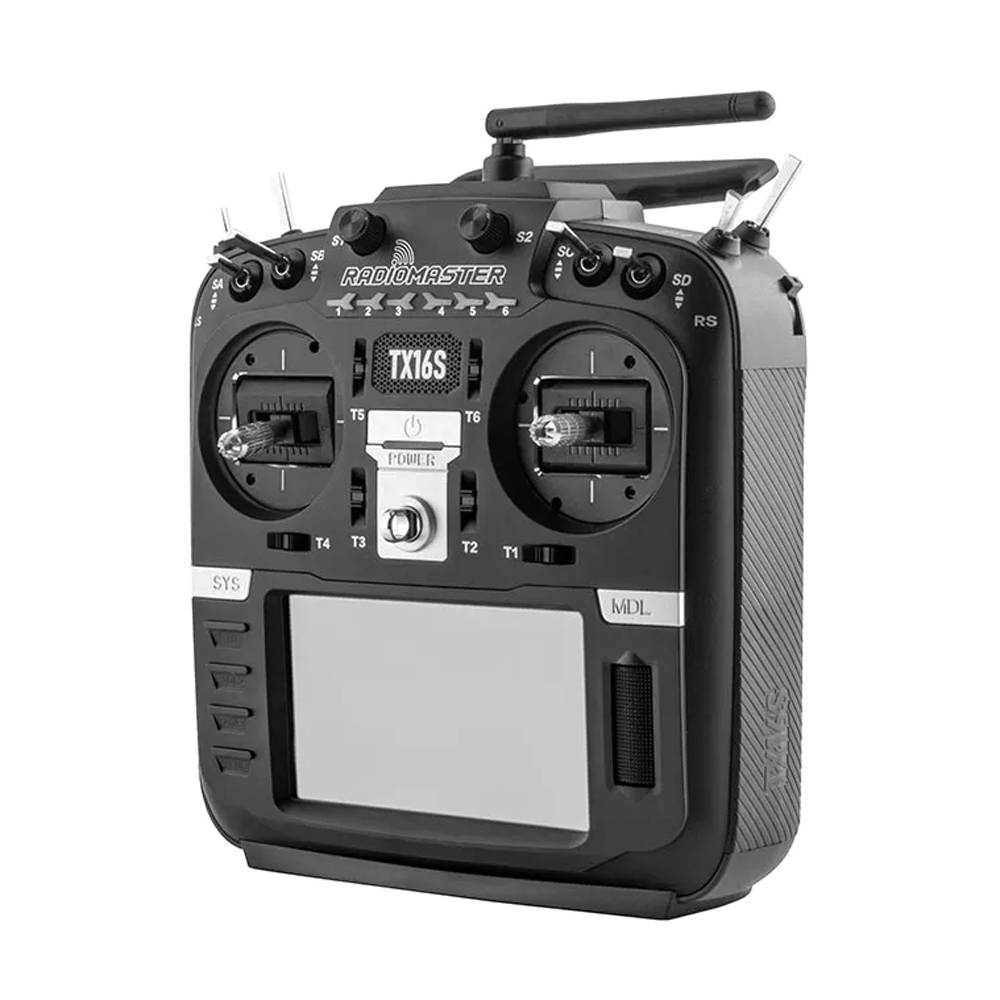

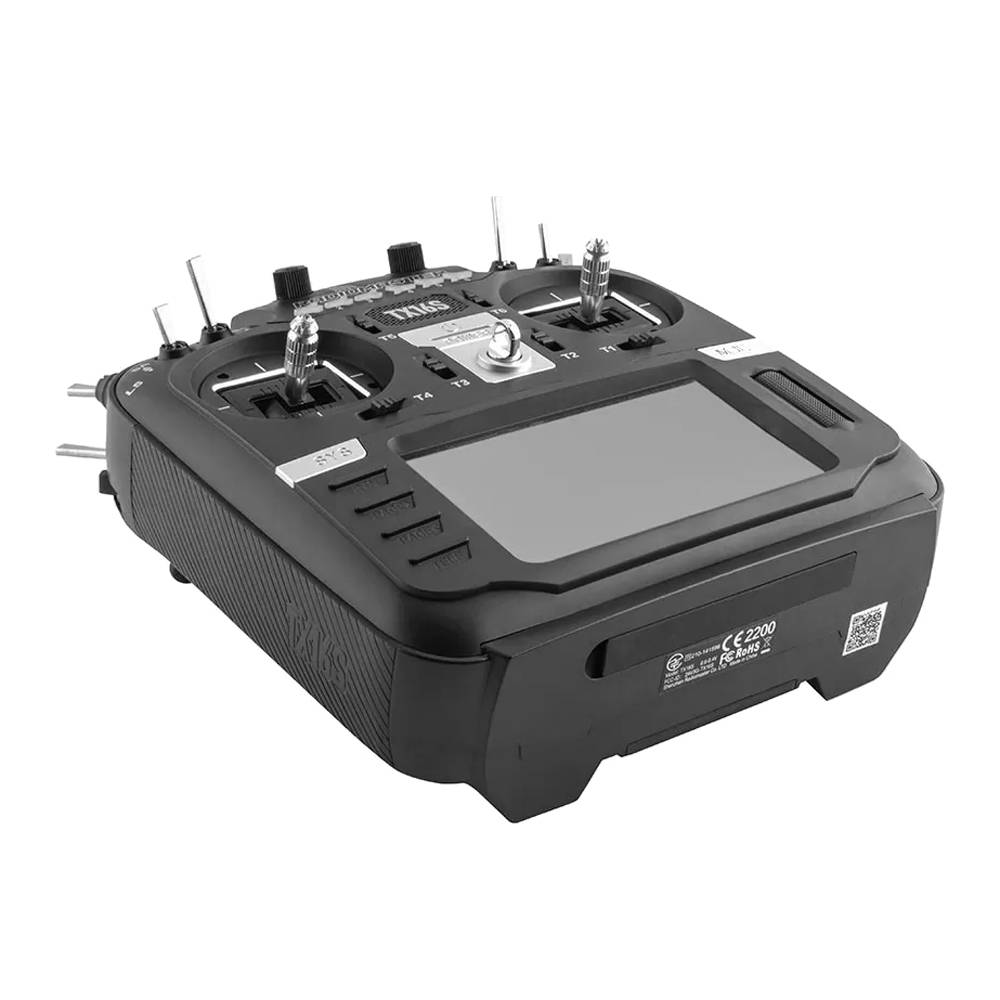

RadioMaster TX16S MKII 2.4GHz 16CH Radio Transmitter w/ Hall Gimbals V4.0

The RadioMaster TX16S Mark II Radio Transmitter is the latest in radio transmitter technology. This radio features Hall Gimbals V4.0, an ELRS Internal Module, OpenTX and EdgeTX compatibility, and 2.4GHz radio frequency with 16 Channels. This updated design includes an easily removable battery cover, raised and flat grips for better ergonomics, and improved S1/S2 knobs with center detents. The 4.3″ IPS color dispay provides easy programming with touch panel precison and the  brand new 3.5mm audio headphone jack and built-in dual speakers provide great audio options for pilots!

THE BEST JUST GOT BETTER.

The RadioMaster TX16S Mark II Radio Transmitter is the latest in radio transmitter technology. This radio features Hall Gimbals V4.0, an Multi-Protocol 4-in1 Internal Module, OpenTX and EdgeTX compatibility, and 2.4GHz radio frequency with 16 Channels. This updated design includes an easily removable battery cover, raised and flat grips for better ergonomics, and improved S1/S2 knobs with center detents. The 4.3″ IPS color dispay provides easy programming with touch panel precison and the  brand new 3.5mm audio headphone jack and built-in dual speakers provide great audio options for pilots!

THE BEST JUST GOT BETTER.

VIDEO: RadioMaster TX16S Mark II Radio Controller – ELRS | 4IN1

Features

• Optimised charge IC now allows up to 2.2A internal USB-C charge current.
• New charge circuitry with integrated reverse-polarity protection
• Optional high/low rear grips included for improved ergonomics
• Redesigned battery cover for improved battery access
• Improved internal circuity and optimised power supply
• Rear mounted audio jack provided headphone output
• Improved S1/S2 knobs with clear center-detents
• Retooled body shell with improved fit and finish
• Hall Gimbals V4.0
• ELRS version/ Multi Protocol

Specifications

• Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
• Upgrade method: Supports USB-C online / SD card offline upgrade
• Antenna gain: 2db (transmit power adjustable)
• Channels: Up to 16 channels (depending on the receiver)
• Gimbal:  V4.0 Hall sensor with Aluminium facia
• Module Bay: JR compatible module bay
• Transmission frequency: 2.400GHz-2.480GHz
• Remote control distance:> 2km @ 22dbm
• Module Firmware: ExpressLRS (ELRS)/ Multi Protocol
• Weight: 750g (without battery)
• Working voltage: 6.6-8.4V DC
• Radio firmware: EdgeTX
• Working current: 400mA
• Size: 287x129x184mm
• Color: Black

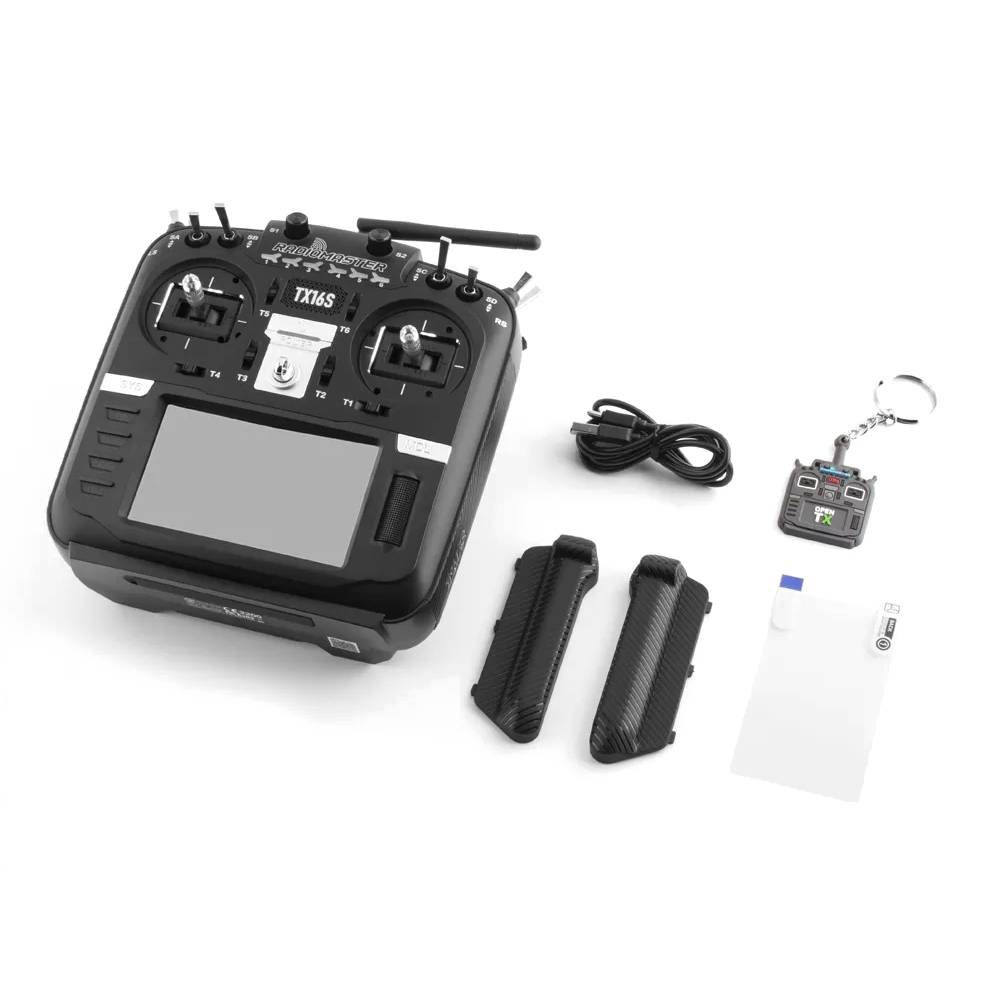

Includes

• 1x RadioMaster TX16S MKII 2.4GHz 16CH Radio Transmitter w/ Hall Gimbals V4.0 (Black) (ELRS/Multi)
• 1x 18650 BatteryTray (Battery Not Included)
• 1x Raised Grips (Set of 2)
• 1x Flat Grips (Set of 2)
• 1x TX16S Key Chain
• 1x Screen Protector
• 1x USB-C Cable
